sshd(8) reads configuration data from /etc/ssh/sshd_config (or the file specified with -f on the command line). The file contains keyword-argument pairs, one per line. For each keyword, the first obtained value will be used. Lines starting with ‘#’ and empty lines are interpreted as comments. Arguments may optionally be enclosed in double quotes (') in order to represent arguments containing spaces.

SSH Command in Linux. The ssh command provides a secure encrypted connection between two. VPN or Virtual Private Network is a connection between a network with other networks in private over the public network. Or in other words to create a separate WAN actual both physically and geographically so logically form a single netwok, packet data flowing between the site and from remote access to users who do will have encryption and authentication to ensure the security, integrity.

The possible keywords and their meanings are as follows (note that keywords are case-insensitive and arguments are case-sensitive):

AcceptEnv

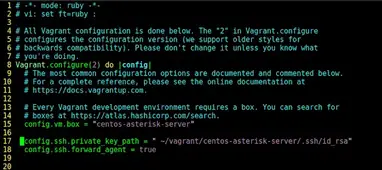

For me worked only adding the config or sshconfig file that was on the dir /.ssh/config on my Linux system on the c: Program Files Git etc ssh directory on Windows. In some git versions we need to edit the C: Users AppData Local Programs Git etc ssh sshconfig file.

Specifies what environment variables sent by the client will be copied into the session's environ(7). See SendEnv and SetEnv in ssh_config(5) for how to configure the client. The TERM environment variable is always accepted whenever the client requests a pseudo-terminal as it is required by the protocol. Variables are specified by name, which may contain the wildcard characters ‘*’ and ‘?’. Multiple environment variables may be separated by whitespace or spread across multiple AcceptEnv directives. Be warned that some environment variables could be used to bypass restricted user environments. For this reason, care should be taken in the use of this directive. The default is not to accept any environment variables.
AddressFamily
Specifies which address family should be used by sshd(8). Valid arguments are any (the default), inet (use IPv4 only), or inet6 (use IPv6 only).
AllowAgentForwarding
Specifies whether ssh-agent(1) forwarding is permitted. The default is yes. Note that disabling agent forwarding does not improve security unless users are also denied shell access, as they can always install their own forwarders.
AllowGroups
This keyword can be followed by a list of group name patterns, separated by spaces. If specified, login is allowed only for users whose primary group or supplementary group list matches one of the patterns. Only group names are valid; a numerical group ID is not recognized. By default, login is allowed for all groups. The allow/deny groups directives are processed in the following order: DenyGroups, AllowGroups.

See PATTERNS in ssh_config(5) for more information on patterns.

AllowStreamLocalForwarding
Specifies whether StreamLocal (Unix-domain socket) forwarding is permitted. The available options are yes (the default) or all to allow StreamLocal forwarding, no to prevent all StreamLocal forwarding, local to allow local (from the perspective of ssh(1)) forwarding only or remote to allow remote forwarding only. Note that disabling StreamLocal forwarding does not improve security unless users are also denied shell access, as they can always install their own forwarders.
AllowTcpForwarding
Specifies whether TCP forwarding is permitted. The available options are yes (the default) or all to allow TCP forwarding, no to prevent all TCP forwarding, local to allow local (from the perspective of ssh(1)) forwarding only or remote to allow remote forwarding only. Note that disabling TCP forwarding does not improve security unless users are also denied shell access, as they can always install their own forwarders.
AllowUsers
This keyword can be followed by a list of user name patterns, separated by spaces. If specified, login is allowed only for user names that match one of the patterns. Only user names are valid; a numerical user ID is not recognized. By default, login is allowed for all users. If the pattern takes the form [email protected] then USER and HOST are separately checked, restricting logins to particular users from particular hosts. HOST criteria may additionally contain addresses to match in CIDR address/masklen format. The allow/deny users directives are processed in the following order: DenyUsers, AllowUsers.

See PATTERNS in ssh_config(5) for more information on patterns.

AuthenticationMethods
Specifies the authentication methods that must be successfully completed for a user to be granted access. This option must be followed by one or more lists of comma-separated authentication method names, or by the single string any to indicate the default behaviour of accepting any single authentication method. If the default is overridden, then successful authentication requires completion of every method in at least one of these lists.

For example, 'publickey,password publickey,keyboard-interactive' would require the user to complete public key authentication, followed by either password or keyboard interactive authentication. Only methods that are next in one or more lists are offered at each stage, so for this example it would not be possible to attempt password or keyboard-interactive authentication before public key.

For keyboard interactive authentication it is also possible to restrict authentication to a specific device by appending a colon followed by the device identifier bsdauth, pam, or skey, depending on the server configuration. For example, 'keyboard-interactive:bsdauth' would restrict keyboard interactive authentication to the bsdauth device.

If the publickey method is listed more than once, sshd(8) verifies that keys that have been used successfully are not reused for subsequent authentications. For example, 'publickey,publickey' requires successful authentication using two different public keys.

Note that each authentication method listed should also be explicitly enabled in the configuration.

The available authentication methods are: 'gssapi-with-mic', 'hostbased', 'keyboard-interactive', 'none' (used for access to password-less accounts when PermitEmptyPasswords is enabled), 'password' and 'publickey'.

AuthorizedKeysCommand
Specifies a program to be used to look up the user's public keys. The program must be owned by root, not writable by group or others and specified by an absolute path. Arguments to AuthorizedKeysCommand accept the tokens described in the TOKENS section. If no arguments are specified then the username of the target user is used.

The program should produce on standard output zero or more lines of authorized_keys output (see AUTHORIZED_KEYS in sshd(8)). AuthorizedKeysCommand is tried after the usual AuthorizedKeysFile files and will not be executed if a matching key is found there. By default, no AuthorizedKeysCommand is run.

AuthorizedKeysCommandUser
Specifies the user under whose account the AuthorizedKeysCommand is run. It is recommended to use a dedicated user that has no other role on the host than running authorized keys commands. If AuthorizedKeysCommand is specified but AuthorizedKeysCommandUser is not, then sshd(8) will refuse to start.
AuthorizedKeysFile
Specifies the file that contains the public keys used for user authentication. The format is described in the AUTHORIZED_KEYS FILE FORMAT section of sshd(8). Arguments to AuthorizedKeysFile accept the tokens described in the TOKENS section. After expansion, AuthorizedKeysFile is taken to be an absolute path or one relative to the user's home directory. Multiple files may be listed, separated by whitespace. Alternately this option may be set to none to skip checking for user keys in files. The default is '.ssh/authorized_keys .ssh/authorized_keys2'.
AuthorizedPrincipalsCommand
Specifies a program to be used to generate the list of allowed certificate principals as per AuthorizedPrincipalsFile. The program must be owned by root, not writable by group or others and specified by an absolute path. Arguments to AuthorizedPrincipalsCommand accept the tokens described in the TOKENS section. If no arguments are specified then the username of the target user is used.

The program should produce on standard output zero or more lines of AuthorizedPrincipalsFile output. If either AuthorizedPrincipalsCommand or AuthorizedPrincipalsFile is specified, then certificates offered by the client for authentication must contain a principal that is listed. By default, no AuthorizedPrincipalsCommand is run.

AuthorizedPrincipalsCommandUser
Specifies the user under whose account the AuthorizedPrincipalsCommand is run. It is recommended to use a dedicated user that has no other role on the host than running authorized principals commands. If AuthorizedPrincipalsCommand is specified but AuthorizedPrincipalsCommandUser is not, then sshd(8) will refuse to start.
AuthorizedPrincipalsFile
Specifies a file that lists principal names that are accepted for certificate authentication. When using certificates signed by a key listed in TrustedUserCAKeys, this file lists names, one of which must appear in the certificate for it to be accepted for authentication. Names are listed one per line preceded by key options (as described in AUTHORIZED_KEYS FILE FORMAT in sshd(8)). Empty lines and comments starting with ‘#’ are ignored.

Arguments to AuthorizedPrincipalsFile accept the tokens described in the TOKENS section. After expansion, AuthorizedPrincipalsFile is taken to be an absolute path or one relative to the user's home directory. The default is none, i.e. not to use a principals file – in this case, the username of the user must appear in a certificate's principals list for it to be accepted.

Note that AuthorizedPrincipalsFile is only used when authentication proceeds using a CA listed in TrustedUserCAKeys and is not consulted for certification authorities trusted via ~/.ssh/authorized_keys, though the principals= key option offers a similar facility (see sshd(8) for details).

Banner
The contents of the specified file are sent to the remote user before authentication is allowed. If the argument is none then no banner is displayed. By default, no banner is displayed.
CASignatureAlgorithms
Specifies which algorithms are allowed for signing of certificates by certificate authorities (CAs). The default is:

Certificates signed using other algorithms will not be accepted for public key or host-based authentication.

ChallengeResponseAuthentication
Specifies whether challenge-response authentication is allowed. All authentication styles from login.conf(5) are supported. The default is yes.
Ssh config proxycommand
ChrootDirectory
Specifies the pathname of a directory to chroot(2) to after authentication. At session startup sshd(8) checks that all components of the pathname are root-owned directories which are not writable by any other user or group. After the chroot, sshd(8) changes the working directory to the user's home directory. Arguments to ChrootDirectory accept the tokens described in the TOKENS section.

The ChrootDirectory must contain the necessary files and directories to support the user's session. For an interactive session this requires at least a shell, typically sh(1), and basic /dev nodes such as null(4), zero(4), stdin(4), stdout(4), stderr(4), and tty(4) devices. For file transfer sessions using SFTP no additional configuration of the environment is necessary if the in-process sftp-server is used, though sessions which use logging may require /dev/log inside the chroot directory on some operating systems (see sftp-server(8) for details).

For safety, it is very important that the directory hierarchy be prevented from modification by other processes on the system (especially those outside the jail). Misconfiguration can lead to unsafe environments which sshd(8) cannot detect.

The default is none, indicating not to chroot(2).

Ciphers
Specifies the ciphers allowed. Multiple ciphers must be comma-separated. If the specified list begins with a ‘+’ character, then the specified ciphers will be appended to the default set instead of replacing them. If the specified list begins with a ‘-’ character, then the specified ciphers (including wildcards) will be removed from the default set instead of replacing them. If the specified list begins with a ‘^’ character, then the specified ciphers will be placed at the head of the default set.

The supported ciphers are:

The default is:

The list of available ciphers may also be obtained using 'ssh -Q cipher'.

ClientAliveCountMax
Sets the number of client alive messages which may be sent without sshd(8) receiving any messages back from the client. If this threshold is reached while client alive messages are being sent, sshd will disconnect the client, terminating the session. It is important to note that the use of client alive messages is very different from TCPKeepAlive. The client alive messages are sent through the encrypted channel and therefore will not be spoofable. The TCP keepalive option enabled by TCPKeepAlive is spoofable. The client alive mechanism is valuable when the client or server depend on knowing when a connection has become unresponsive.

The default value is 3. If ClientAliveInterval is set to 15, and ClientAliveCountMax is left at the default, unresponsive SSH clients will be disconnected after approximately 45 seconds. Setting a zero ClientAliveCountMax disables connection termination.

ClientAliveInterval
Sets a timeout interval in seconds after which if no data has been received from the client, sshd(8) will send a message through the encrypted channel to request a response from the client. The default is 0, indicating that these messages will not be sent to the client.
Compression
Specifies whether compression is enabled after the user has authenticated successfully. The argument must be yes, delayed (a legacy synonym for yes) or no. The default is yes.
DenyGroups
This keyword can be followed by a list of group name patterns, separated by spaces. Login is disallowed for users whose primary group or supplementary group list matches one of the patterns. Only group names are valid; a numerical group ID is not recognized. By default, login is allowed for all groups. The allow/deny groups directives are processed in the following order: DenyGroups, AllowGroups.

See PATTERNS in ssh_config(5) for more information on patterns.

DenyUsers
This keyword can be followed by a list of user name patterns, separated by spaces. Login is disallowed for user names that match one of the patterns. Only user names are valid; a numerical user ID is not recognized. By default, login is allowed for all users. If the pattern takes the form [email protected] then USER and HOST are separately checked, restricting logins to particular users from particular hosts. HOST criteria may additionally contain addresses to match in CIDR address/masklen format. The allow/deny users directives are processed in the following order: DenyUsers, AllowUsers.

See PATTERNS in ssh_config(5) for more information on patterns.

DisableForwarding
Disables all forwarding features, including X11, ssh-agent(1), TCP and StreamLocal. This option overrides all other forwarding-related options and may simplify restricted configurations.
ExposeAuthInfo
Writes a temporary file containing a list of authentication methods and public credentials (e.g. keys) used to authenticate the user. The location of the file is exposed to the user session through the SSH_USER_AUTH environment variable. The default is no.
FingerprintHash
Specifies the hash algorithm used when logging key fingerprints. Valid options are: md5 and sha256. The default is sha256.
ForceCommand
Forces the execution of the command specified by ForceCommand, ignoring any command supplied by the client and ~/.ssh/rc if present. The command is invoked by using the user's login shell with the -c option. This applies to shell, command, or subsystem execution. It is most useful inside a Match block. The command originally supplied by the client is available in the SSH_ORIGINAL_COMMAND environment variable. Specifying a command of internal-sftp will force the use of an in-process SFTP server that requires no support files when used with ChrootDirectory. The default is none.
GatewayPorts
Specifies whether remote hosts are allowed to connect to ports forwarded for the client. By default, sshd(8) binds remote port forwardings to the loopback address. This prevents other remote hosts from connecting to forwarded ports. GatewayPorts can be used to specify that sshd should allow remote port forwardings to bind to non-loopback addresses, thus allowing other hosts to connect. The argument may be no to force remote port forwardings to be available to the local host only, yes to force remote port forwardings to bind to the wildcard address, or clientspecified to allow the client to select the address to which the forwarding is bound. The default is no.
GSSAPIAuthentication
Specifies whether user authentication based on GSSAPI is allowed. The default is no.
GSSAPICleanupCredentials
Specifies whether to automatically destroy the user's credentials cache on logout. The default is yes.
GSSAPIStrictAcceptorCheck
Determines whether to be strict about the identity of the GSSAPI acceptor a client authenticates against. If set to yes then the client must authenticate against the host service on the current hostname. If set to no then the client may authenticate against any service key stored in the machine's default store. This facility is provided to assist with operation on multi homed machines. The default is yes.
HostbasedAcceptedAlgorithms
Specifies the signature algorithms that will be accepted for hostbased authentication as a list of comma-separated patterns. Alternately if the specified list begins with a ‘+’ character, then the specified signature algorithms will be appended to the default set instead of replacing them. If the specified list begins with a ‘-’ character, then the specified signature algorithms (including wildcards) will be removed from the default set instead of replacing them. If the specified list begins with a ‘^’ character, then the specified signature algorithms will be placed at the head of the default set. The default for this option is:

The list of available signature algorithms may also be obtained using 'ssh -Q HostbasedAcceptedAlgorithms'. This was formerly named HostbasedAcceptedKeyTypes.

HostbasedAuthentication
Specifies whether rhosts or /etc/hosts.equiv authentication together with successful public key client host authentication is allowed (host-based authentication). The default is no.
HostbasedUsesNameFromPacketOnly
Specifies whether or not the server will attempt to perform a reverse name lookup when matching the name in the ~/.shosts, ~/.rhosts, and /etc/hosts.equiv files during HostbasedAuthentication. A setting of yes means that sshd(8) uses the name supplied by the client rather than attempting to resolve the name from the TCP connection itself. The default is no.
HostCertificate
Specifies a file containing a public host certificate. The certificate's public key must match a private host key already specified by HostKey. The default behaviour of sshd(8) is not to load any certificates.
HostKey
Specifies a file containing a private host key used by SSH. The defaults are /etc/ssh/ssh_host_ecdsa_key, /etc/ssh/ssh_host_ed25519_key and /etc/ssh/ssh_host_rsa_key.

Note that sshd(8) will refuse to use a file if it is group/world-accessible and that the HostKeyAlgorithms option restricts which of the keys are actually used by sshd(8).

It is possible to have multiple host key files. It is also possible to specify public host key files instead. In this case operations on the private key will be delegated to an ssh-agent(1).

HostKeyAgent
Identifies the UNIX-domain socket used to communicate with an agent that has access to the private host keys. If the string 'SSH_AUTH_SOCK' is specified, the location of the socket will be read from the SSH_AUTH_SOCK environment variable.
HostKeyAlgorithms
Specifies the host key signature algorithms that the server offers. The default for this option is:

The list of available signature algorithms may also be obtained using 'ssh -Q HostKeyAlgorithms'.

IgnoreRhosts
Specifies whether to ignore per-user .rhosts and .shosts files during HostbasedAuthentication. The system-wide /etc/hosts.equiv and /etc/shosts.equiv are still used regardless of this setting.

Accepted values are yes (the default) to ignore all per-user files, shosts-only to allow the use of .shosts but to ignore .rhosts or no to allow both .shosts and rhosts.

IgnoreUserKnownHosts
Specifies whether sshd(8) should ignore the user's ~/.ssh/known_hosts during HostbasedAuthentication and use only the system-wide known hosts file /etc/ssh/known_hosts. The default is “no”.
Include
Include the specified configuration file(s). Multiple pathnames may be specified and each pathname may contain glob(7) wildcards that will be expanded and processed in lexical order. Files without absolute paths are assumed to be in /etc/ssh. An Include directive may appear inside a Match block to perform conditional inclusion.
IPQoS
Specifies the IPv4 type-of-service or DSCP class for the connection. Accepted values are af11, af12, af13, af21, af22, af23, af31, af32, af33, af41, af42, af43, cs0, cs1, cs2, cs3, cs4, cs5, cs6, cs7, ef, le, lowdelay, throughput, reliability, a numeric value, or none to use the operating system default. This option may take one or two arguments, separated by whitespace. If one argument is specified, it is used as the packet class unconditionally. If two values are specified, the first is automatically selected for interactive sessions and the second for non-interactive sessions. The default is af21 (Low-Latency Data) for interactive sessions and cs1 (Lower Effort) for non-interactive sessions.
KbdInteractiveAuthentication
Specifies whether to allow keyboard-interactive authentication. The argument to this keyword must be yes or no. The default is to use whatever value ChallengeResponseAuthentication is set to (by default yes).
KerberosAuthentication
Specifies whether the password provided by the user for PasswordAuthentication will be validated through the Kerberos KDC. To use this option, the server needs a Kerberos servtab which allows the verification of the KDC's identity. The default is no.
KerberosGetAFSToken
If AFS is active and the user has a Kerberos 5 TGT, attempt to acquire an AFS token before accessing the user's home directory. The default is no.
KerberosOrLocalPasswd
If password authentication through Kerberos fails then the password will be validated via any additional local mechanism such as /etc/passwd. The default is yes.
KerberosTicketCleanup
Specifies whether to automatically destroy the user's ticket cache file on logout. The default is yes.
KexAlgorithms
Specifies the available KEX (Key Exchange) algorithms. Multiple algorithms must be comma-separated. Alternately if the specified list begins with a ‘+’ character, then the specified methods will be appended to the default set instead of replacing them. If the specified list begins with a ‘-’ character, then the specified methods (including wildcards) will be removed from the default set instead of replacing them. If the specified list begins with a ‘^’ character, then the specified methods will be placed at the head of the default set. The supported algorithms are:
  • curve25519-sha256
  • [email protected]
  • diffie-hellman-group1-sha1
  • diffie-hellman-group14-sha1
  • diffie-hellman-group14-sha256
  • diffie-hellman-group16-sha512
  • diffie-hellman-group18-sha512
  • diffie-hellman-group-exchange-sha1
  • diffie-hellman-group-exchange-sha256
  • ecdh-sha2-nistp256
  • ecdh-sha2-nistp384
  • ecdh-sha2-nistp521
  • [email protected]

The default is:

The list of available key exchange algorithms may also be obtained using 'ssh -Q KexAlgorithms'.

ListenAddress
Specifies the local addresses sshd(8) should listen on. The following forms may be used:
  • ListenAddresshostnameaddress [rdomaindomain]
  • ListenAddresshostname:port [rdomaindomain]
  • ListenAddressIPv4_address:port [rdomaindomain]
  • ListenAddress [hostnameaddress]:port [rdomaindomain]

The optional rdomain qualifier requests sshd(8) listen in an explicit routing domain. If port is not specified, sshd will listen on the address and all Port options specified. The default is to listen on all local addresses on the current default routing domain. Multiple ListenAddress options are permitted. For more information on routing domains, see rdomain(4).

LoginGraceTime
The server disconnects after this time if the user has not successfully logged in. If the value is 0, there is no time limit. The default is 120 seconds.
LogLevel
Gives the verbosity level that is used when logging messages from sshd(8). The possible values are: QUIET, FATAL, ERROR, INFO, VERBOSE, DEBUG, DEBUG1, DEBUG2, and DEBUG3. The default is INFO. DEBUG and DEBUG1 are equivalent. DEBUG2 and DEBUG3 each specify higher levels of debugging output. Logging with a DEBUG level violates the privacy of users and is not recommended.
LogVerbose
Specify one or more overrides to LogLevel. An override consists of a pattern lists that matches the source file, function and line number to force detailed logging for. For example, an override pattern of:

would enable detailed logging for line 1000 of kex.c, everything in the kex_exchange_identification() function, and all code in the packet.c file. This option is intended for debugging and no overrides are enabled by default.

MACs
Specifies the available MAC (message authentication code) algorithms. The MAC algorithm is used for data integrity protection. Multiple algorithms must be comma-separated. If the specified list begins with a ‘+’ character, then the specified algorithms will be appended to the default set instead of replacing them. If the specified list begins with a ‘-’ character, then the specified algorithms (including wildcards) will be removed from the default set instead of replacing them. If the specified list begins with a ‘^’ character, then the specified algorithms will be placed at the head of the default set.

The algorithms that contain '-etm' calculate the MAC after encryption (encrypt-then-mac). These are considered safer and their use recommended. The supported MACs are:

The default is:

Ssh config proxycommand

The list of available MAC algorithms may also be obtained using 'ssh -Q mac'.

Match
Introduces a conditional block. If all of the criteria on the Match line are satisfied, the keywords on the following lines override those set in the global section of the config file, until either another Match line or the end of the file. If a keyword appears in multiple Match blocks that are satisfied, only the first instance of the keyword is applied.

The arguments to Match are one or more criteria-pattern pairs or the single token All which matches all criteria. The available criteria are User, Group, Host, LocalAddress, LocalPort, RDomain, and Address (with RDomain representing the rdomain(4) on which the connection was received).

The match patterns may consist of single entries or comma-separated lists and may use the wildcard and negation operators described in the PATTERNS section of ssh_config(5).

The patterns in an Address criteria may additionally contain addresses to match in CIDR address/masklen format, such as 192.0.2.0/24 or 2001:db8::/32. Note that the mask length provided must be consistent with the address - it is an error to specify a mask length that is too long for the address or one with bits set in this host portion of the address. For example, 192.0.2.0/33 and 192.0.2.0/8, respectively.

Only a subset of keywords may be used on the lines following a Match keyword. Available keywords are AcceptEnv, AllowAgentForwarding, AllowGroups, AllowStreamLocalForwarding, AllowTcpForwarding, AllowUsers, AuthenticationMethods, AuthorizedKeysCommand, AuthorizedKeysCommandUser, AuthorizedKeysFile, AuthorizedPrincipalsCommand, AuthorizedPrincipalsCommandUser, AuthorizedPrincipalsFile, Banner, ChrootDirectory, ClientAliveCountMax, ClientAliveInterval, DenyGroups, DenyUsers, DisableForwarding, ForceCommand, GatewayPorts, GSSAPIAuthentication, HostbasedAcceptedAlgorithms, HostbasedAuthentication, HostbasedUsesNameFromPacketOnly, IgnoreRhosts, Include, IPQoS, KbdInteractiveAuthentication, KerberosAuthentication, LogLevel, MaxAuthTries, MaxSessions, PasswordAuthentication, PermitEmptyPasswords, PermitListen, PermitOpen, PermitRootLogin, PermitTTY, PermitTunnel, PermitUserRC, PubkeyAcceptedAlgorithms, PubkeyAuthentication, RekeyLimit, RevokedKeys, RDomain, SetEnv, StreamLocalBindMask, StreamLocalBindUnlink, TrustedUserCAKeys, X11DisplayOffset, X11Forwarding and X11UseLocalhost.

MaxAuthTries
Specifies the maximum number of authentication attempts permitted per connection. Once the number of failures reaches half this value, additional failures are logged. The default is 6.
MaxSessions
Specifies the maximum number of open shell, login or subsystem (e.g. sftp) sessions permitted per network connection. Multiple sessions may be established by clients that support connection multiplexing. Setting MaxSessions to 1 will effectively disable session multiplexing, whereas setting it to 0 will prevent all shell, login and subsystem sessions while still permitting forwarding. The default is 10.
MaxStartups
Specifies the maximum number of concurrent unauthenticated connections to the SSH daemon. Additional connections will be dropped until authentication succeeds or the LoginGraceTime expires for a connection. The default is 10:30:100.

Alternatively, random early drop can be enabled by specifying the three colon separated values start:rate:full (e.g. '10:30:60'). sshd(8) will refuse connection attempts with a probability of rate/100 (30%) if there are currently start (10) unauthenticated connections. The probability increases linearly and all connection attempts are refused if the number of unauthenticated connections reaches full (60).

ModuliFile
Specifies the moduli(5) file that contains the Diffie-Hellman groups used for the “diffie-hellman-group-exchange-sha1” and “diffie-hellman-group-exchange-sha256” key exchange methods. The default is /etc/moduli.
PasswordAuthentication
Specifies whether password authentication is allowed. The default is yes.
PermitEmptyPasswords
When password authentication is allowed, it specifies whether the server allows login to accounts with empty password strings. The default is no.
PermitListen
Specifies the addresses/ports on which a remote TCP port forwarding may listen. The listen specification must be one of the following forms:
  • PermitListenport
  • PermitListenhost:port

Multiple permissions may be specified by separating them with whitespace. An argument of any can be used to remove all restrictions and permit any listen requests. An argument of none can be used to prohibit all listen requests. The host name may contain wildcards as described in the PATTERNS section in ssh_config(5). The wildcard ‘*’ can also be used in place of a port number to allow all ports. By default all port forwarding listen requests are permitted. Note that the GatewayPorts option may further restrict which addresses may be listened on. Note also that ssh(1) will request a listen host of “localhost” if no listen host was specifically requested, and this name is treated differently to explicit localhost addresses of “127.0.0.1” and “::1”.

PermitOpen
Specifies the destinations to which TCP port forwarding is permitted. The forwarding specification must be one of the following forms:
  • PermitOpenhost:port
  • PermitOpenIPv4_addr:port
  • PermitOpen[IPv6_addr]:port

Multiple forwards may be specified by separating them with whitespace. An argument of any can be used to remove all restrictions and permit any forwarding requests. An argument of none can be used to prohibit all forwarding requests. The wildcard ‘*’ can be used for host or port to allow all hosts or ports respectively. Otherwise, no pattern matching or address lookups are performed on supplied names. By default all port forwarding requests are permitted.

PermitRootLogin
Specifies whether root can log in using ssh(1). The argument must be yes, prohibit-password, Sshforced-commands-only, or no. The default is prohibit-password.

If this option is set to prohibit-password (or its deprecated alias, without-password), password and keyboard-interactive authentication are disabled for root.

If this option is set to forced-commands-only, root login with public key authentication will be allowed, but only if the command option has been specified (which may be useful for taking remote backups even if root login is normally not allowed). All other authentication methods are disabled for root.

If this option is set to no, root is not allowed to log in.

PermitTTY
Specifies whether pty(4) allocation is permitted. The default is yes.
PermitTunnel
Specifies whether tun(4) device forwarding is allowed. The argument must be yes, point-to-point (layer 3), ethernet (layer 2), or no. Specifying yes permits both point-to-point and ethernet. The default is no.

Independent of this setting, the permissions of the selected tun(4) device must allow access to the user.

PermitUserEnvironment
Specifies whether ~/.ssh/environment and environment= options in ~/.ssh/authorized_keys are processed by sshd(8). Valid options are yes, no or a pattern-list specifying which environment variable names to accept (for example 'LANG,LC_*'). The default is no. Enabling environment processing may enable users to bypass access restrictions in some configurations using mechanisms such as LD_PRELOAD.
PermitUserRC
Specifies whether any ~/.ssh/rc file is executed. The default is yes.
PerSourceMaxStartups
Specifies the number of unauthenticated connections allowed from a given source address, or “none” if there is no limit. This limit is applied in addition to MaxStartups, whichever is lower. The default is none.
PerSourceNetBlockSize
Specifies the number of bits of source address that are grouped together for the purposes of applying PerSourceMaxStartups limits. Values for IPv4 and optionally IPv6 may be specified, separated by a colon. The default is 32:128, which means each address is considered individually.
PidFile
Specifies the file that contains the process ID of the SSH daemon, or none to not write one. The default is /var/run/sshd.pid.
Port
Specifies the port number that sshd(8) listens on. The default is 22. Multiple options of this type are permitted. See also ListenAddress.
PrintLastLog
Specifies whether sshd(8) should print the date and time of the last user login when a user logs in interactively. The default is yes.
PrintMotd
Specifies whether sshd(8) should print /etc/motd when a user logs in interactively. (On some systems it is also printed by the shell, /etc/profile, or equivalent.) The default is yes.
PubkeyAcceptedAlgorithms
Specifies the signature algorithms that will be accepted for public key authentication as a list of comma-separated patterns. Alternately if the specified list begins with a ‘+’ character, then the specified algorithms will be appended to the default set instead of replacing them. If the specified list begins with a ‘-’ character, then the specified algorithms (including wildcards) will be removed from the default set instead of replacing them. If the specified list begins with a ‘^’ character, then the specified algorithms will be placed at the head of the default set. The default for this option is:

The list of available signature algorithms may also be obtained using 'ssh -Q PubkeyAcceptedAlgorithms'.

PubkeyAuthOptions
Sets one or more public key authentication options. The supported keywords are: none (the default; indicating no additional options are enabled), touch-required and verify-required. Openssh for windows

The touch-required option causes public key authentication using a FIDO authenticator algorithm (i.e. ecdsa-sk or ed25519-sk) to always require the signature to attest that a physically present user explicitly confirmed the authentication (usually by touching the authenticator). By default, sshd(8) requires user presence unless overridden with an authorized_keys option. The touch-required flag disables this override.

The verify-required option requires a FIDO key signature attest that the user was verified, e.g. via a PIN.

Ssh Config Password

Neither the touch-required or verify-required options have any effect for other, non-FIDO, public key types.

PubkeyAuthentication
Specifies whether public key authentication is allowed. The default is yes.
RekeyLimit
Specifies the maximum amount of data that may be transmitted before the session key is renegotiated, optionally followed by a maximum amount of time that may pass before the session key is renegotiated. The first argument is specified in bytes and may have a suffix of ‘K’, ‘M’, or ‘G’ to indicate Kilobytes, Megabytes, or Gigabytes, respectively. The default is between ‘1G’ and ‘4G’, depending on the cipher. The optional second value is specified in seconds and may use any of the units documented in the TIME FORMATS section. The default value for RekeyLimit is default none, which means that rekeying is performed after the cipher's default amount of data has been sent or received and no time based rekeying is done.
RevokedKeys
Specifies revoked public keys file, or none to not use one. Keys listed in this file will be refused for public key authentication. Note that if this file is not readable, then public key authentication will be refused for all users. Keys may be specified as a text file, listing one public key per line, or as an OpenSSH Key Revocation List (KRL) as generated by ssh-keygen(1). For more information on KRLs, see the KEY REVOCATION LISTS section in ssh-keygen(1).
RDomain
Specifies an explicit routing domain that is applied after authentication has completed. The user session, as well and any forwarded or listening IP sockets, will be bound to this rdomain(4). If the routing domain is set to %D, then the domain in which the incoming connection was received will be applied.
SecurityKeyProvider
Specifies a path to a library that will be used when loading FIDO authenticator-hosted keys, overriding the default of using the built-in USB HID support.
SetEnv
Specifies one or more environment variables to set in child sessions started by sshd(8) as “NAME=VALUE”. The environment value may be quoted (e.g. if it contains whitespace characters). Environment variables set by SetEnv override the default environment and any variables specified by the user via AcceptEnv or PermitUserEnvironment.
StreamLocalBindMask
Sets the octal file creation mode mask (umask) used when creating a Unix-domain socket file for local or remote port forwarding. This option is only used for port forwarding to a Unix-domain socket file.

The default value is 0177, which creates a Unix-domain socket file that is readable and writable only by the owner. Note that not all operating systems honor the file mode on Unix-domain socket files.

StreamLocalBindUnlink
Specifies whether to remove an existing Unix-domain socket file for local or remote port forwarding before creating a new one. If the socket file already exists and StreamLocalBindUnlink is not enabled, sshd will be unable to forward the port to the Unix-domain socket file. This option is only used for port forwarding to a Unix-domain socket file.

The argument must be yes or no. The default is no.

StrictModes
Specifies whether sshd(8) should check file modes and ownership of the user's files and home directory before accepting login. This is normally desirable because novices sometimes accidentally leave their directory or files world-writable. The default is yes. Note that this does not apply to ChrootDirectory, whose permissions and ownership are checked unconditionally.
Subsystem
Configures an external subsystem (e.g. file transfer daemon). Arguments should be a subsystem name and a command (with optional arguments) to execute upon subsystem request.

The command sftp-server implements the SFTP file transfer subsystem.

Alternately the name internal-sftp implements an in-process SFTP server. This may simplify configurations using ChrootDirectory to force a different filesystem root on clients.

Ssh config localforward

By default no subsystems are defined.

SyslogFacility
Gives the facility code that is used when logging messages from sshd(8). The possible values are: DAEMON, USER, AUTH, LOCAL0, LOCAL1, LOCAL2, LOCAL3, LOCAL4, LOCAL5, LOCAL6, LOCAL7. The default is AUTH.
TCPKeepAlive
Specifies whether the system should send TCP keepalive messages to the other side. If they are sent, death of the connection or crash of one of the machines will be properly noticed. However, this means that connections will die if the route is down temporarily, and some people find it annoying. On the other hand, if TCP keepalives are not sent, sessions may hang indefinitely on the server, leaving 'ghost' users and consuming server resources.

The default is yes (to send TCP keepalive messages), and the server will notice if the network goes down or the client host crashes. This avoids infinitely hanging sessions.

To disable TCP keepalive messages, the value should be set to no.

TrustedUserCAKeys
Specifies a file containing public keys of certificate authorities that are trusted to sign user certificates for authentication, or none to not use one. Keys are listed one per line; empty lines and comments starting with ‘#’ are allowed. If a certificate is presented for authentication and has its signing CA key listed in this file, then it may be used for authentication for any user listed in the certificate's principals list. Note that certificates that lack a list of principals will not be permitted for authentication using TrustedUserCAKeys. For more details on certificates, see the CERTIFICATES section in ssh-keygen(1).
UseDNS
Specifies whether sshd(8) should look up the remote host name, and to check that the resolved host name for the remote IP address maps back to the very same IP address.

If this option is set to no (the default) then only addresses and not host names may be used in ~/.ssh/authorized_keysfrom and sshd_configMatchHost directives.

VersionAddendum
Optionally specifies additional text to append to the SSH protocol banner sent by the server upon connection. The default is none.
X11DisplayOffset
Specifies the first display number available for sshd(8)'s X11 forwarding. This prevents sshd from interfering with real X11 servers. The default is 10.
X11Forwarding
Specifies whether X11 forwarding is permitted. The argument must be yes or no. The default is no.

When X11 forwarding is enabled, there may be additional exposure to the server and to client displays if the sshd(8) proxy display is configured to listen on the wildcard address (see X11UseLocalhost), though this is not the default. Additionally, the authentication spoofing and authentication data verification and substitution occur on the client side. The security risk of using X11 forwarding is that the client's X11 display server may be exposed to attack when the SSH client requests forwarding (see the warnings for ForwardX11 in ssh_config(5)). A system administrator may have a stance in which they want to protect clients that may expose themselves to attack by unwittingly requesting X11 forwarding, which can warrant a no setting.

Note that disabling X11 forwarding does not prevent users from forwarding X11 traffic, as users can always install their own forwarders.

X11UseLocalhost
Specifies whether sshd(8) should bind the X11 forwarding server to the loopback address or to the wildcard address. By default, sshd binds the forwarding server to the loopback address and sets the hostname part of the DISPLAY environment variable to localhost. This prevents remote hosts from connecting to the proxy display. However, some older X11 clients may not function with this configuration. X11UseLocalhost may be set to no to specify that the forwarding server should be bound to the wildcard address. The argument must be yes or no. The default is yes.
XAuthLocation
Specifies the full pathname of the xauth(1) program, or none to not use one. The default is /usr/X11R6/bin/xauth.

Parent page: Internet and Networking >> SSH

Contents

Once you have installed an OpenSSH server,

you will need to configure it by editing the sshd_config file in the /etc/ssh directory.

sshd_config is the configuration file for the OpenSSH server. ssh_config is the configuration file for the OpenSSH client. Make sure not to get them mixed up.

First, make a backup of your sshd_config file by copying it to your home directory, or by making a read-only copy in /etc/ssh by doing:

Ssh Config Multiple Hosts

Creating a read-only backup in /etc/ssh means you'll always be able to find a known-good configuration when you need it.

Once you've backed up your sshd_config file, you can make changes with any text editor, for example;

runs the standard text editor in Ubuntu 12.04 or more recent. For older versions replace 'sudo' with 'gksudo'. Once you've made your changes (see the suggestions in the rest of this page), you can apply them by saving the file then doing:

If you get the error, 'Unable to connect to Upstart', restart ssh with the following:

Configuring OpenSSH means striking a balance between security and ease-of-use. Ubuntu's default configuration tries to be as secure as possible without making it impossible to use in common use cases. This page discusses some changes you can make, and how they affect the balance between security and ease-of-use. When reading each section, you should decide what balance is right for your specific situation.

Because a lot of people with SSH servers use weak passwords, many online attackers will look for an SSH server, then start guessing passwords at random. An attacker can try thousands of passwords in an hour, and guess even the strongest password given enough time. The recommended solution is to use SSH keys instead of passwords. To be as hard to guess as a normal SSH key, a password would have to contain 634 random letters and numbers. If you'll always be able to log in to your computer with an SSH key, you should disable password authentication altogether.

If you disable password authentication, it will only be possible to connect from computers you have specifically approved. This massively improves your security, but makes it impossible for you to connect to your own computer from a friend's PC without pre-approving the PC, or from your own laptop when you accidentally delete your key.

It's recommended to disable password authentication unless you have a specific reason not to.

To disable password authentication, look for the following line in your sshd_config file:

replace it with a line that looks like this:

PasswordAuthentication no

Once you have saved the file and restarted your SSH server, you shouldn't even be asked for a password when you log in.

By default, you can tunnel network connections through an SSH session. For example, you could connect over the Internet to your PC, tunnel a remote desktop connection, and access your desktop. This is known as 'port forwarding'.

By default, you can also tunnel specific graphical applications through an SSH session. For example, you could connect over the Internet to your PC and run nautilus 'file://$HOME' to see your PC's home folder. This is known as 'X11 forwarding'.

While both of these are very useful, they also give more options to an attacker who has already guessed your password. Disabling these options gives you a little security, but not as much as you'd think. With access to a normal shell, a resourceful attacker can replicate both of these techniques and a specially-modified SSH client.

It's only recommended to disable forwarding if you also use SSH keys with specified commands.

To disable forwarding, look for the following lines in your sshd_config:

X11Forwarding yes

and replace them with:

X11Forwarding no

If either of the above lines don't exist, just add the replacement to the bottom of the file. You can disable each of these independently if you prefer.

You can explicitly allow or deny access for certain users or groups. For example, if you have a family PC where most people have weak passwords, you might want to allow SSH access just for yourself.

Allowing or denying SSH access for specific users can significantly improve your security if users with poor security practices don't need SSH access.

It's recommended to specify which accounts can use SSH if only a few users want (not) to use SSH.

To allow only the users Fred and Wilma to connect to your computer, add the following line to the bottom of the sshd_config file:

To allow everyone except the users Dino and Pebbles to connect to your computer, add the following line to the bottom of the sshd_config file:

DenyUsers Dino Pebbles

It's possible to create very complex rules about who can use SSH - you can allow or deny specific groups of users, or users whose names match a specific pattern, or who are logging in from a specific location. For more details about how to create complex rules, see the sshd_config man page

It's possible to limit the rate at which one IP address can establish new SSH connections by configuring the uncomplicated firewall (ufw). If an IP address is tries to connect more than 10 times in 30 seconds, all the following attempts will fail since the connections will be DROPped. The rule is added to the firewall by running a single command:

On a single-user or low-powered system, such as a laptop, the number of total simultaneous pending (not yet authorized) login connections to the system can also be limited. This example will allow two pending connections. Between the third and tenth connection the system will start randomly dropping connections from 30% up to 100% at the tenth simultaneous connection. This should be set in sshd_config.

In a multi-user or server environment, these numbers should be set significantly higher depending on resources and demand to alleviate denial-of-access attacks. Setting a lower the login grace time (time to keep pending connections alive while waiting for authorization) can be a good idea as it frees up pending connections quicker but at the expense of convenience.

LoginGraceTime 30

By default, the OpenSSH server logs to the AUTH facility of syslog, at the INFO level. If you want to record more information - such as failed login attempts - you should increase the logging level to VERBOSE.

It's recommended to log more information if you're curious about malicious SSH traffic.

Windows 10 Ssh Config

To increase the level, find the following line in your sshd_config:

and change it to this:

LogLevel VERBOSE

Now all the details of ssh login attempts will be saved in your /var/log/auth.log file.

If you have started using a different port, or if you think your server is well-enough hidden not to need much security, you should increase your logging level and examine your auth.log file every so often. If you find a significant number of spurious login attempts, then your computer is under attack and you need more security.

Whatever security precautions you've taken, you might want to set the logging level to VERBOSE for a week, and see how much spurious traffic you get. It can be a sobering experience to see just how much your computer gets attacked.

If you want to try to scare novice attackers, it can be funny to display a banner containing legalese. This doesn't add any security, because anyone that's managed to break in won't care about a 'no trespassing' sign--but it might give a bad guy a chuckle.

Ssh Config 5

To add a banner that will be displayed before authentication, find this line:

and replace it with:

Banner /etc/issue.net

This will display the contents of the /etc/issue.net file, which you should edit to your taste. If you want to display the same banner to SSH users as to users logging in on a local console, replace the line with:

To edit the banner itself try

Here is an example for what you might put in an issue or issue.net file and you could just copy&paste this in:

Once you have finished editing sshd_config, make sure to save your changes before restarting your SSH daemon.

Ssh Configs

First, check that your SSH daemon is running:

This command should produce a line like this:

If there is no line, your SSH daemon is not running. If it is, you should next check that it's listening for incoming connections:

This command should produce a line that looks like one of these:

If there is more than one line, in particular with a port number different than 22, then your SSH daemon is listening on more than one port - you might want to go back and delete some Port lines in your sshd_config. If there are no lines, your SSH daemon is not listening on any ports, so you need to add at least one Port line. If the line specifies something other than '*:22' ([::]:22 is IPv6), then your SSH daemon is listening on a non-standard port or address, which you might want to fix.

Next, try logging in from your own computer:

This will print a lot of debugging information, and will try to connect to your SSH server. You should be prompted to type your password, and you should get another command-line when you type your password in. If this works, then your SSH server is listening on the standard SSH port. If you have set your computer to listen on a non-standard port, then you will need to go back and comment out (or delete) a line in your configuration that reads Port 22. Otherwise, your SSH server has been configured correctly.

Ssh Configure

To leave the SSH command-line, type:

If you have a local network (such as a home or office network), next try logging in from one of the other computers on your network. If nothing happens, you might need to tell your computer's firewall to allow connections on port 22 (or from the non-standard port you chose earlier).

Ssh Config Password

Finally, try logging in from another computer elsewhere on the Internet - perhaps from work (if your computer is at home) or from home (if your computer is at your work). If you can't access your computer this way, you might need to tell your router's firewall to allow connections from port 22, and might also need to configure Network Address Translation.
